Apply Canny Edge Effect on an Image

Steps to Apply Canny Edge Effect on an Image | OpenCV with Visual Studio in Windows 10. In this Tutorial, we are going to apply Canny Edge Effect on an image using OpenCV.
  1. First of all, Follow this tutorial to Install & Configure OpenCV with Visual Studio 2015

  2. Copy the Full Source Code to Apply Canny Edge on an Image from here:
  3. #include<opencv2/core/core.hpp>
    #include<opencv2/highgui/highgui.hpp>
    #include<opencv2/imgproc/imgproc.hpp>

    #include<iostream>
    #include<conio.h>

    int main() {

     cv::Mat imgOriginal;        // input image
     cv::Mat imgGrayscale;       // grayscale image
     cv::Mat imgBlurred;         // blured image
     cv::Mat imgCanny;           // Canny edge image

     imgOriginal = cv::imread("C:/Briefcase/Chess.jpg");        // open image

     if (imgOriginal.empty()) {                                  // if unable to open image
      std::cout << "error: image not read from file\n";       // show error message
      return(0);
     }

     cv::cvtColor(imgOriginal, imgGrayscale, CV_BGR2GRAY);       // convert to grayscale

     cv::GaussianBlur(imgGrayscale,imgBlurred,cv::Size(5, 5),1.5);  // Blur Effect

     cv::Canny(imgBlurred,imgCanny,100,200);   //Canny Effect

     // declare windows
     cv::namedWindow("imgOriginal", CV_WINDOW_AUTOSIZE);
     cv::namedWindow("imgCanny", CV_WINDOW_AUTOSIZE);

     // show windows
     cv::imshow("imgOriginal", imgOriginal);
     cv::imshow("imgCanny", imgCanny);

     cv::waitKey(0);

     return(0);
    }

    OR
    Get CannyImg.cpp from Github:
    Download CannyImg.cpp

  4. Paste full source code and Run it (Ctrl+F5 or F5).

OUTPUT

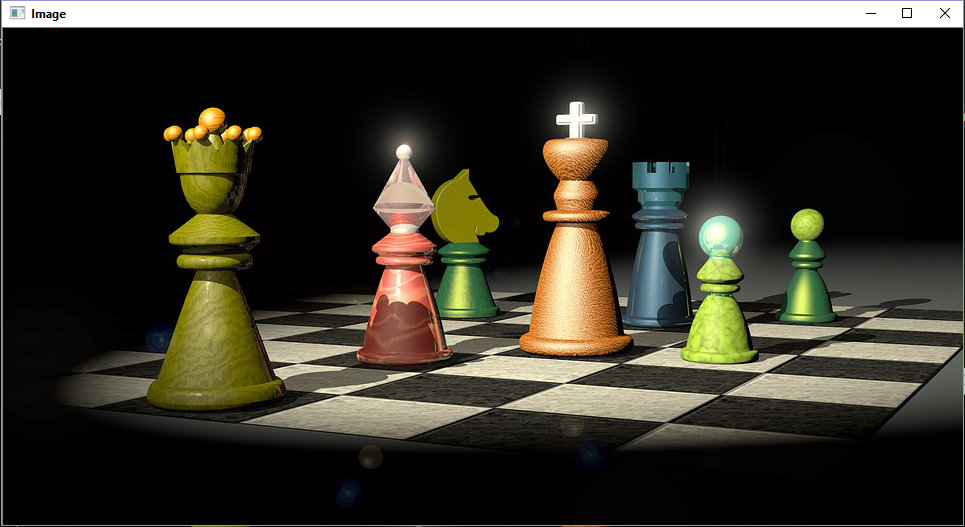

Load an Image OpenCV

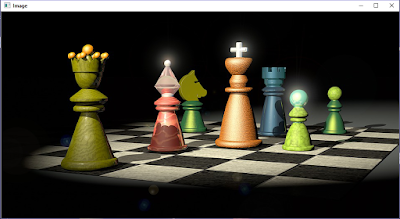

Load Image OpenCV

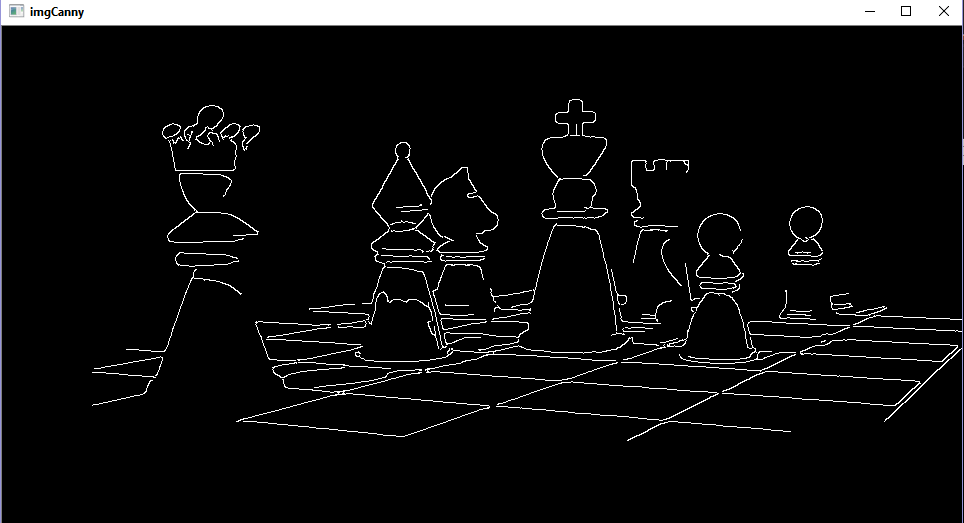

Canny Edge Effect OpenCV
Canny Edge Image OpenCV


Explaination : Function used: cv::Canny(imgBlurred,imgCanny,100,200) - This function can process images and implement the Canny Edge Detector Algorithm.
  • 1st parameter is the source image.
  • 2nd parameter is the destination or resultant image.
  • 3rd parameter is the low threshold value.
  • 4th parameter is the high threshold value.

Like, Share and Comment Below. You may also like this:
